Programming WatchKit with F#

Disclaimer: This is just a hack. I’m not in any position to make announcements about stuff, but Xamarin loves F# and I’m sure that better solutions than this are forthcoming. But this was fun to get running, so…

Xamarin just released it’s Preview of Watch Kit support and naturally, I had to see if it was possible to use F# to program the forthcoming Apple Watch. Yes, it is.

As always with Watch Kit Apps, the Xamarin solution consists of three projects:

1. A Parent app that is a normal iOS app;
2. An Extension that runs on a connected iPhone and executes the program logic; and
3. A Watch App that runs on the Watch and is essentially a remote display for the Extension App

You can read much more about this at Xamarin’s Watch Kit Documentation site.

To create an F# Watch solution, first create an F#-based Parent App. Then, add the Extension project to that app, an F#-based Custom Keyboard Extension. Finally, add a Watch App from the C#/iOS/Unified/Apple Watch solution template.

The Watch App consists only of a storyboard and resources. It doesn’t actually have any C# (or F#) code in it.

Follow these instructions to [set project references and identifiers].

Switching the Extension from Custom Keyboard to Watch Kit

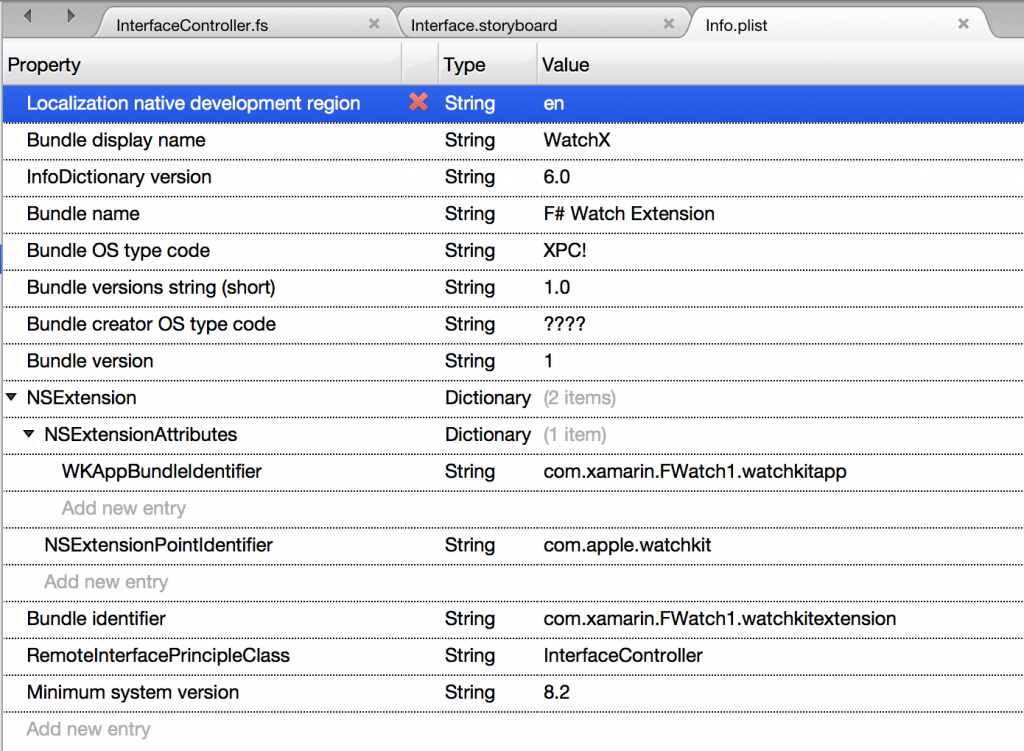

You will have to manually edit the info.plist of the Watch Extension:

• In NSExtension, switch the NSExtensionPointIdentifier to com.apple.watchkit; and
• Under NSExtensionAttributes, add a WKAppBundleIdentifier key to the identifier of your Watch App (e.g., com.xamarin.FWatch1.watchkitapp)

Now you can get rid of the template F# code and replace it with something like this:

[code lang="fsharp"]
namespace WatchX

open System
open UIKit
open Foundation
open WatchKit

type InterfaceController(ip : IntPtr) =
inherit WKInterfaceController(ip)

override this.Awake (context) =
System.Console.WriteLine("Hello F#")
this.myLabel.SetText("F# |> I ♡")
[/code]

Again, this is covered in much more detail in Xamarin’s docs, but every scene in the Watch App’s storyboard is backed by a subtype of WKInterfaceController. Since it’s loaded from a Storyboard, it uses the constructor that takes an IntPtr. The Awake method is called when the controller is instantiated.

The Hacky Part

Xamarin has not yet released designer support for Watch Kit, so for now, you need to edit your Watch App’s Storyboard in XCode Interface Builder.

That’s not the hacky part.

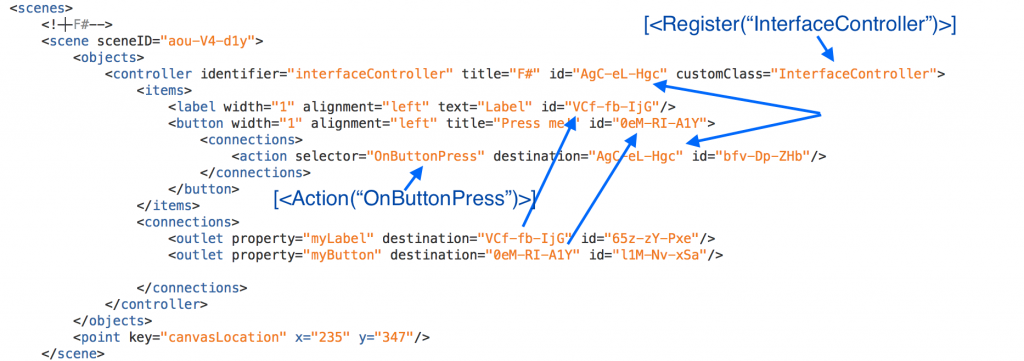

Once you’ve designed your UI, you have to hand-edit the Storyboard XML, adding connections elements that define your outlets (properties) and actions (event-handlers). You have to set the destination attribute to refer to the id of the associated control:

But really, that’s the only ugly part! ;-)

Back in your Extension app, you now have to use attributes to link up your F# code with elements within the Storyboard. The RegisterAttribute on your WKInterfaceController links to the customClass attribute of the controller element, and the name of your OutletAttribute properties must correspond to the property attribute of the outlet elements. Finally, the selector attribute of your action elements must have a corresponding ActionAttribute :

[code lang="fsharp"]
namespace WatchX

open System
open UIKit
open Foundation
open WatchKit

[<register ("InterfaceController")>]
type InterfaceController(ip : IntPtr) =
    inherit WKInterfaceController(ip)

    let mutable label : WKInterfaceLabel = null
    let mutable button : WKInterfaceButton = null

    let mutable clickCount = 0

    [<outlet>]
    member this.myLabel with get() = label
    member this.myLabel with set(v) = label < - v

    [<Outlet>]
    member this.myButton with get() = button
    member this.myButton with set(v) = button < - v

    [<Action("OnButtonPress")>]
    member this.OnButtonPush () =
        clickCount < - clickCount + 1
        sprintf "Pressed %d times" clickCount
        |> this.myLabel.SetText


    override this.Awake (context) =
        System.Console.WriteLine("Hello F#")
        this.myLabel.SetText("F# |> I ♡")

[/code]

And that’s really all there is to putting F# on your wrist!

[video width="1644" height="1172" mp4="/uploads/2015/01/WatchKitF.mp4"][/video]

Github project
